Black Power Cable Assembly Half Shell Panel Mount 7 Pin Electrical Connector IP68

Basic Information
Place of Origin: Guangdong, China
Brand Name: Sreada
Model Number: SRD.TLN.103F.307.HLAC72
Minimum Order Quantity: 50 Sets
Price: $3.00 - $30.00/Sets
Packaging Details: by packaged vaccum seal bags or plastic boxes,then carton packaging
Delivery Time: 5-7 Days
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000 Set/Sets per Week
Detail Information
Cores: 7 Series: 1031F
Pulling And Inserting Times: > 3000 Cycles Temperature: -45℃~+125℃
Protection Index: IP68 Termination: Solder
High Light:

Black Power Cable Assembly

,

IP68 Power Cable Assembly

,

IP68 7 Pin Electrical Connector


Product Description

Half Shell Panel Mount Electrical 7 Pin Connectors Black Short Type



Descriptions of 1031F waterproof connectors:

1. security of the Push-Pull self-latching system

2. multipole types 2 to 16 contacts

3. easy mating, can be blind-mated (guiding mechanism ensures precise alignment)

4. increased equipment life span (guiding mechanism optimally protects the contacts)

5. robust and shock resistant (designs ideal for equipment used in the field)

6. watertight connection (IP 68/IP 66),waterproof and sandproof

7. solder contacts

8. high packing density for space savings

9. 360°screening for full EMC shielding

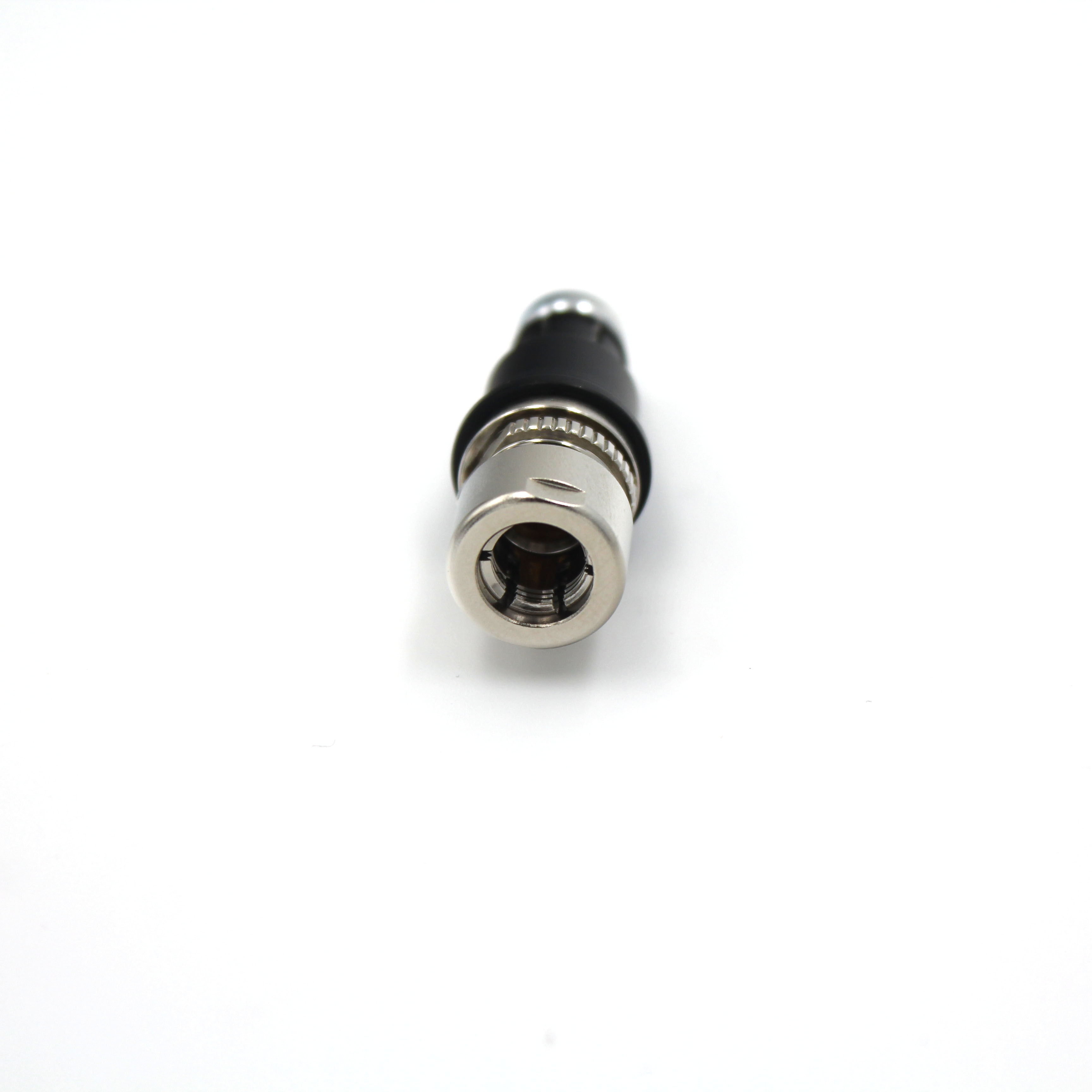

Black Power Cable Assembly Half Shell Panel Mount 7 Pin Electrical Connector IP68 0







Specifications of 1031F waterproof connectors:



Pulling and inserting times > 3000 cycles
Humidity Maximum humidity up to 95% at a temperature of 40℃
Temperature -45℃~+125℃
Vibration frequency 10-20000HZ, acceleration 147m/s², ≤1um instantaneous break
Impact acceleration 490m/s², ≤1um instantaneous break
Protection index (mated) IP68
Connector type Plug, Male Pins
Termination Solder
Fastening type Push-pull
Shell material Brass
Shell finish Chrome
Shell color Black
Contact material Brass
Contact finish-mating Gold
Contact color Gold
Insert material polyphenylene sulfite ( PPS)





Application Of 1031F waterproof Connectors:

1. medical:diagnostic devices, surgicai instrumentation, therapy applications, medical imaging, cardiac assist devices, disposable equipment

2. instrumentation:test&measurement, sensors, data acquisition, automation, scientific research, vacuum

3. transport:avionics, maritime, automotive, railways

4. energy:petrol&gas, nuclear, renewable energies, batteries, fuel cells

5. defense&security:communication systems, surveillance equipment, computers, target acquisition

6. broadcast:studios and outside broadcasting, TV and motion picture, HD and SD cameras, remote camero control

7. extreme:motorsports, sailboat racing, diving, submarine industry, weatherproof applications

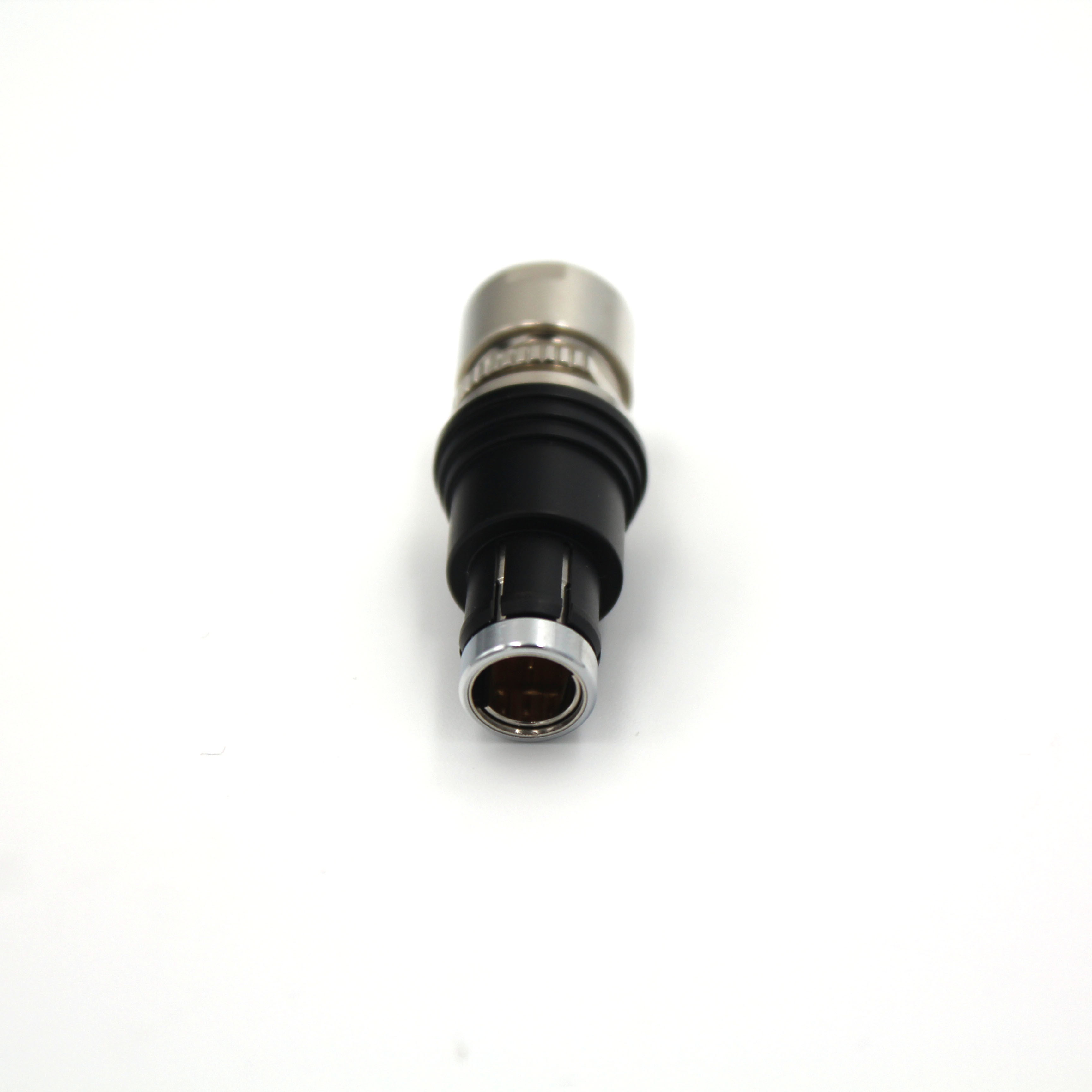

Black Power Cable Assembly Half Shell Panel Mount 7 Pin Electrical Connector IP68 1
