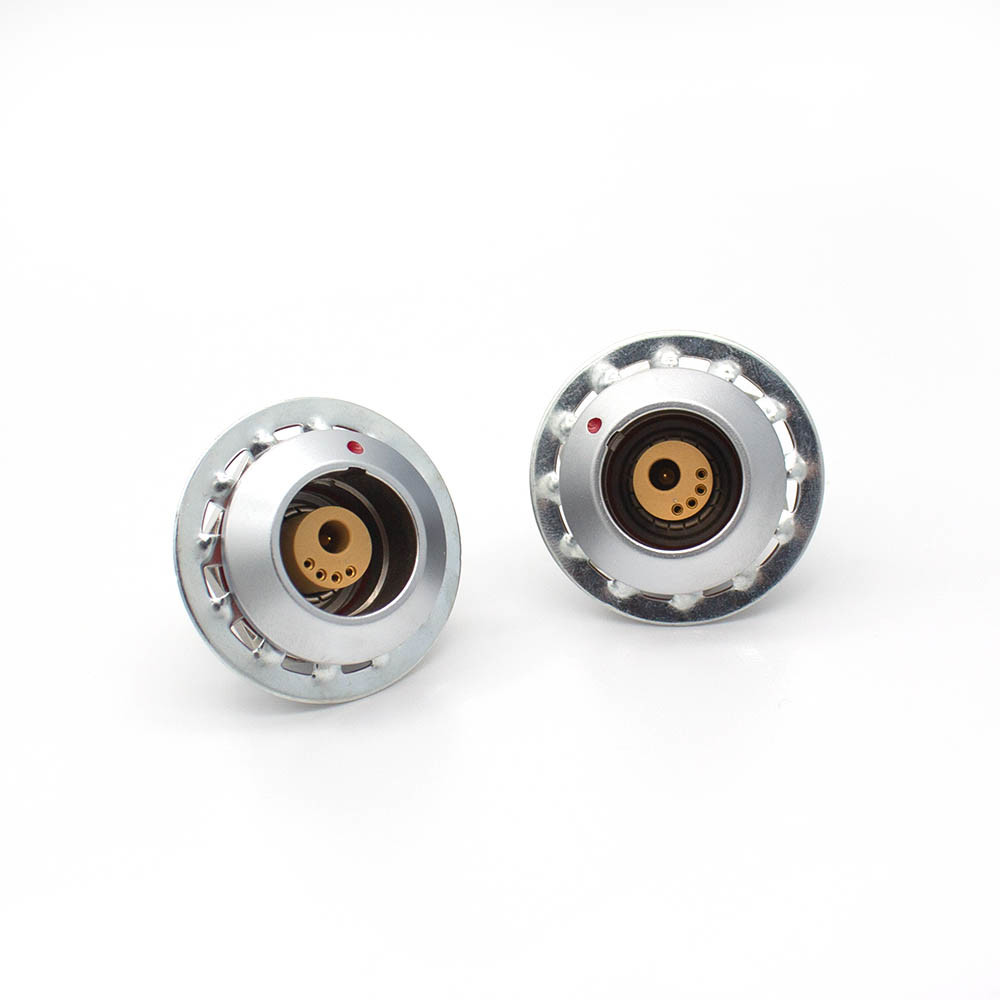

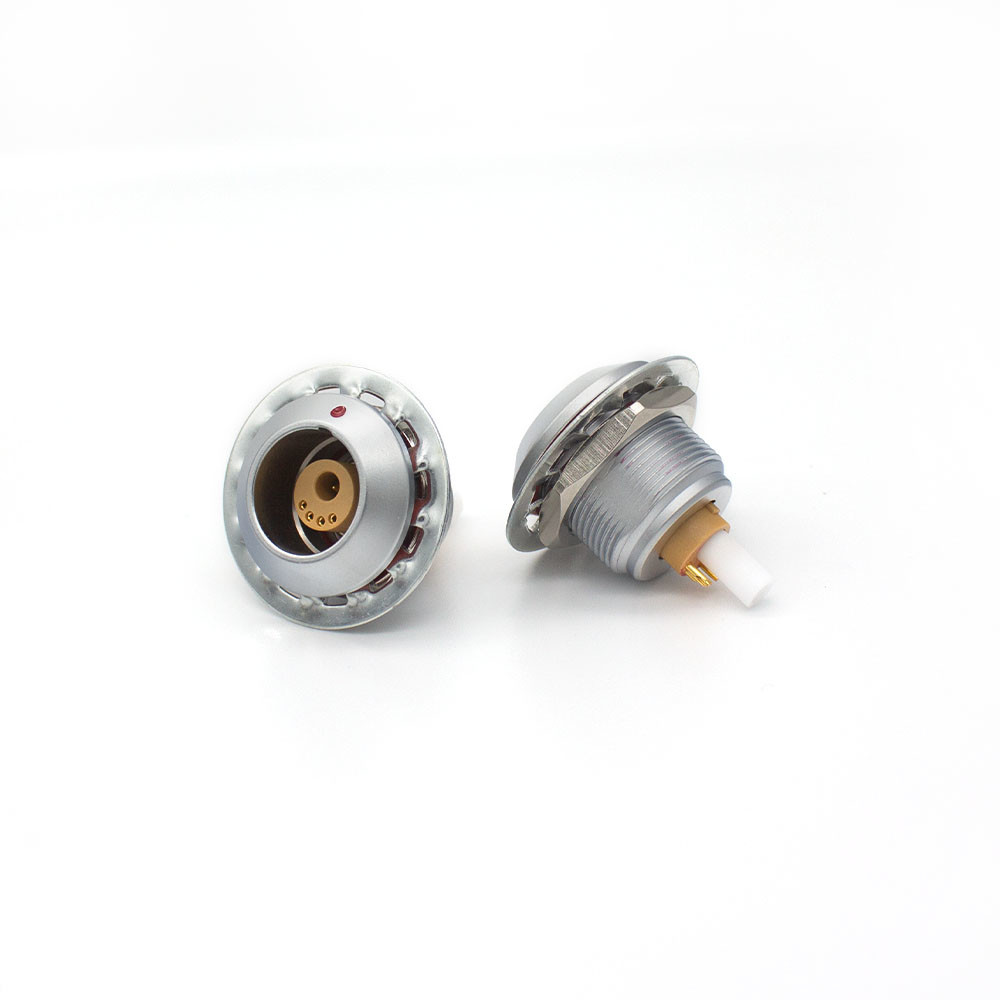

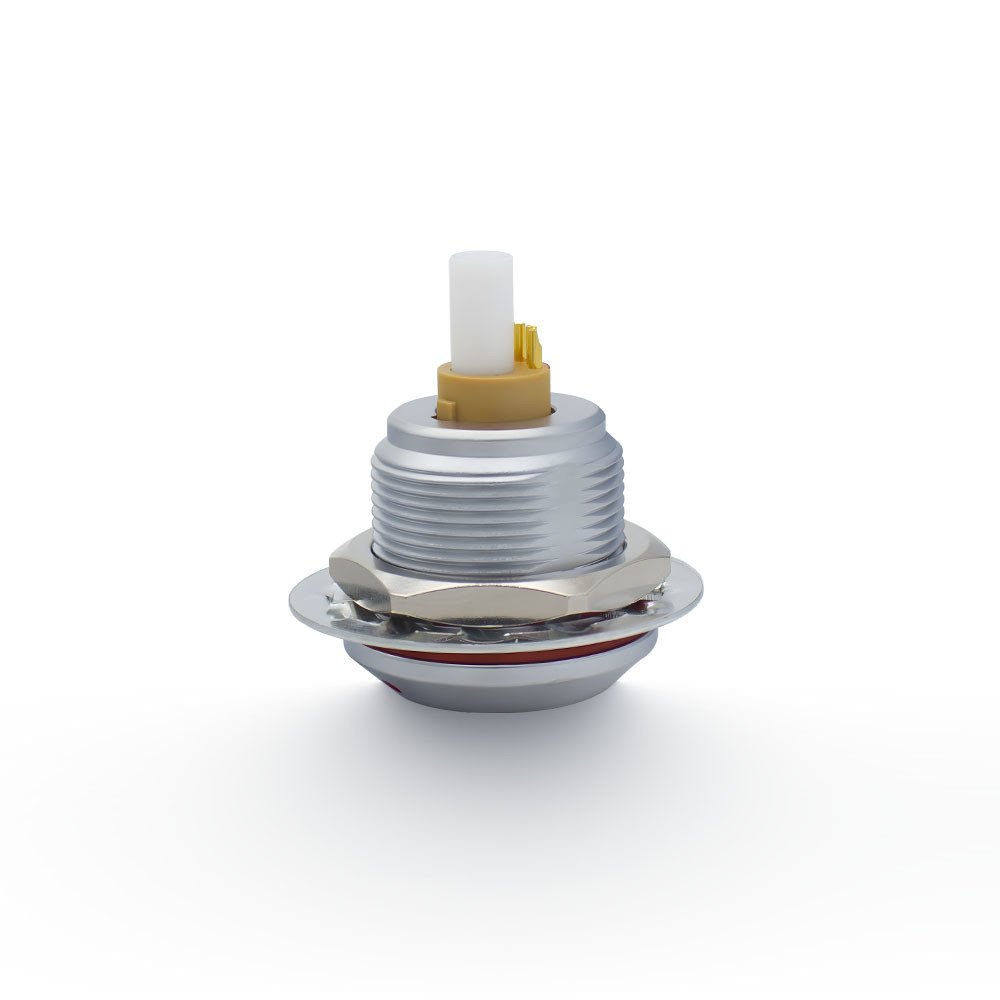

Sreada K Series 4-core push-pull type self-locking IP68 waterproof sockets

Basic Information
Place of Origin: Guangdong, China
Brand Name: SREADA
Certification: UL,CE, RHoS, ISO9001
Model Number: SRD.ZGG.2K.704.CLL
Minimum Order Quantity: 50 Sets
Price: $3.00 - $30.00/Sets
Packaging Details: carton size:big one:200x155x80mm(net weight 0.2kg),smail one:170x120x35mm(net weight 0.1kg) by packaged vaccum seal bags or plastic boxes,then carton packaging
Delivery Time: 5-7 Days
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000 Set/Sets per Week
Detail Information
Cores: 4 Series: 2K
Termination Type: Female Solder Hybrid Insulator: PPS
Endurance: 5000 Mating Cycles Temp: -45°C / +125°C
Vibration: 15 G [10 Hz - 2000 Hz] Salt Spray Corrosion: >1000 Hr

Product Description

Sreada K Series 4-core push-pull type self-locking IP68 waterproof sockets





Description Of 2K Series 4 Pin Connectors:

The K series connectors are designed for outdoor applications. They include an inner sleeve and two sealing rings to prevent solid or liquid penetration into plugs, floating receptacles, fixed receptacles, or dual-way enclosures. All models in this series are waterproof when plugged in and achieve IP68 protection when properly assembled with the corresponding cable.





Specification of 2K Series 4 Pin Connectors:



Durability >5000 times Temperature -45℃~+125℃
Salt Mist Test >48h Waterproof Rating IP65-68
Vibration 10-20000Hz,15g shock resistance 100g.6ms
Contact material Brass gold plating Shell color Silver





Features Of 2K Series 4 Pin Connectors:

1. security of the Push-Pull self-latching system

2. keying system («G» key standard) for connector alignment

3. multipole types 2 to 16 contacts

4. solder, print contacts (straight or elbow)

5. watertight connection (IP 68/IP 66)

6. rugged housing for extreme working conditions





About our company:

SREADA has been a high tech enterprise focus on connecting system and cable assembly solution since 2012. Our own tens of patents, relevant connector industrial skills, application expertise and wide range platform makes us to be the ideal partner for customized product development. Our products ensure reliable transfer in numerous application area such as medical technology, test and measurement technology, industrial control, automotive, communication, aerospace and audio video area.

We have been offering 1,000 combinations of products that continue to grow which found in a variety of challenging application environments, including high/low voltage, plastic, M8/M12, coax, electronic and optic hybrid and cable assembly.

In the future, we will continue to strive to become the world's leading supplier of industrial connectivity systems.











Sreada K Series 4-core push-pull type self-locking IP68 waterproof sockets 0







Why choose us?

1.Produce Range

SHENZHEN SREADA TECHNOLOGY CO., LTD.,major in the connector, who have wide range of products, such as Circular Push Pull Connectors, Push Pull Electrical Connectors, Push Pull Cable Connectors, Panel Mount Socket, Medical Cable Connectors, Custom Electrical Connectors and so on.

2.Scope of application
The product is widely used in medical, instrumentation, transport, energy, defense&security, broadcast, extreme .It can meet the diverse needs of customers.

3.service
with the "User first, customer first" Company motto, quality assurance, economic price, fast Delivery time are our only faith. we will try our best to make every customer to enjoy the the most flexible, efficient services. We sincerely hope that we can seek the common development and cooperation with the customer together to achieve a win-win situation.

4.Logistics

We can send the goods to the customer's country directly by the international logistics, no matter send by air or by sea.
we will try our best to let the customer to get the parcel more conveniently.
