| Place of Origin: | China |
|---|---|
| Brand Name: | Sreada |
| Model Number: | TGG.2B.704.CLAD62Z |
| Minimum Order Quantity: | 50 Sets |
| Price: | $3.00 - $30.00/Sets |
| Packaging Details: | Neutral or customized packing accepted |
| Supply Ability: | 5000 Set/Sets per Week |
| Pins: | 4p | Shell Style/Model: | Straight Plug,0key,cable Collet |
|---|---|---|---|
| Housing Material: | Brass(chrome Plated)shell And Collet Nut | Specifications: | Low Voltage |
| Contact Type: | Solder | Durability(Shel): | 5000 Mating Cycles |
| Temperature: | -45℃~+125℃ | Humidity(max): | ≤95%[at 60℃/140F] |
| IP Rating: | 50 | Electroplating(Gold): | 6.34uin |
| High Light: | TGG Medical Device Connector,FGG Medical Device Connector,FGG Watertight Electrical Connectors |
||
Low Voltage 5pin SRD.TGG.2k.704 Watertight Connector

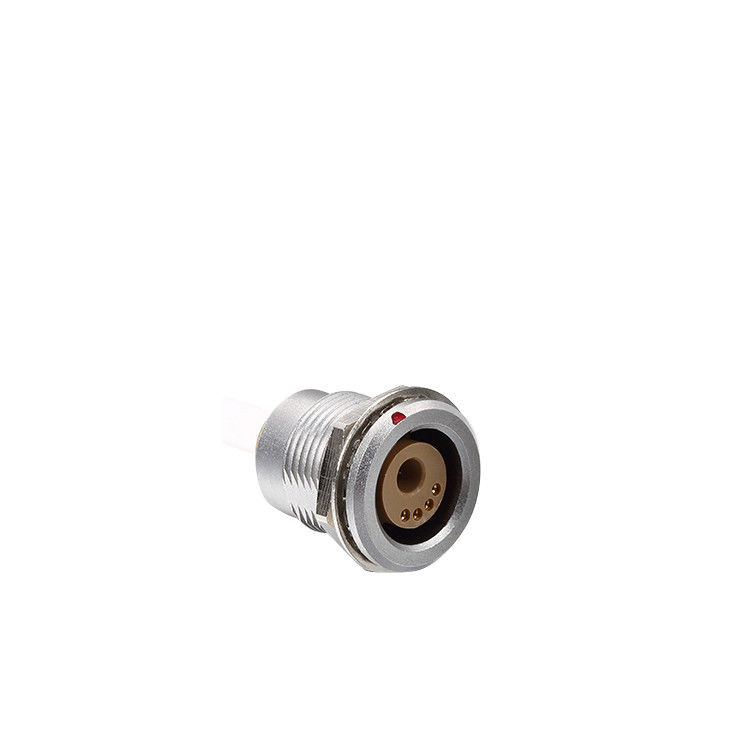

TGG Compatible FGG 2B.704.CLAD62Z 4+1 Pin Straight Plug Connector
| B Series connector with thefollowing main features: | |
· Security of the push-pull self-latching system; | · Mechanical properties and environmental factors: · Endurance>5000 cycles · Humidity.up to 95% at 60℃ · Temperature range:-45℃~+125℃ · Resistance to vibration:10-20000Hz,15g · Shock resistance:100g.6ms · Salt spray corrosion test >48hrs · Protection index:IP50 |
Low voltage push-pull connectors for data, signal, electrical and power use!
Specifications of TGG.2B.704 self-locking connectors:
| Endurance | >5000 cycles |
| Humidity | Maximum humidity up to 95% at a temperature of 60℃ |
| Temperature | -45℃~+125℃ |
| Vibration | 10~20000HZ,15g |
| Mechanical shock | 100g.6ms |
| Salt spray corrosion test | >48hrs |
| Protection level | IP50 |
| Termination | Solder |
| Fastening type | Push-pull |
| Shell finish | Chrome |
| Shell color | Silver |
| Contact material | Brass |
| Contact color | Gold |
| Insert material | PPS |
Related Products
Q1:Are you a factory or a trading company?
We are a factory with 2000 square meter, Including more than 50 units CNC etc, machine, connectors and cable assembly line and our own R&D teams.
Q2: What certificates do you have?
We have international quality certificates and standard ISO9001,RoHS,CE,ULand so on.
Q3: What are your advantages?
We are professional manufacture with more than 12 years on Connector . And the warranty of our products is 1 years.
Q4: What are your main markets?
We mainly export to West and North Europe, North American, Australia, India and so on. Having enjoyed good reputation.
Q5: Do you provide OEM or ODM services?
Yes, we offer OEM and ODM service. Our designers and technicians make your ideas come true that belong to your personalized products.
Q6: What are the shipping methods?
The delivery by Sea Freight Service and Express ( DHL, UPS ,Fedex ,etc )
Q7: Can you send us all of your products details?
Yes, we can send you more about our product details by email. Contact us now please
Q8: How do we know your products quality? Can I get sample free?
You can make the sample to check the quality first. If you want to get sample by free. Contact us now.
Q9: Where is your factory located? How can I visit there?
Our factory is located Shenzhen city, Guangdong province, China.
Visit description:
The plan: You can fly to Shenzhen Baoan international Airport, we will arrange car to pick you up to our factory.
